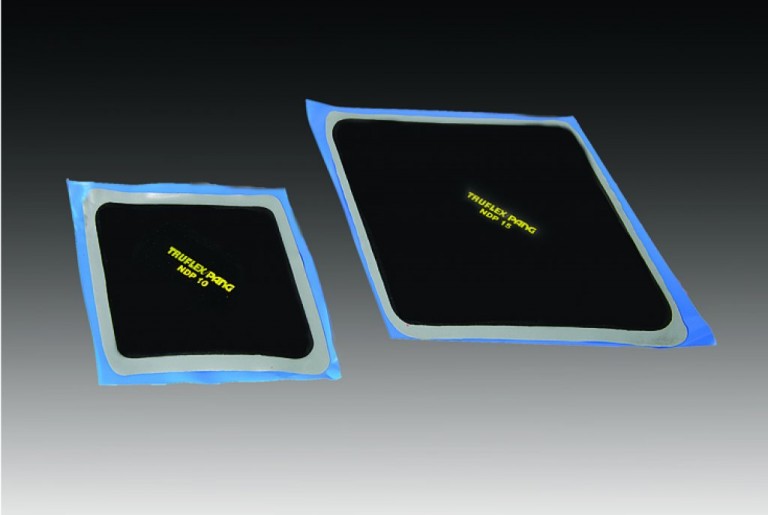

- Black, diamond-shaped, fabric-reinforced repairs with an extremely tough cover stock and beveled edges
- Designed to cover bottom side of belt for breakthrough damage
- Recommended for permanent repair of impact breaks
- Must be applied using Pangofol and PANG Activator
- Available in four different widths
- NDP5 – 5.25″ x 6″ bx of 10
- NDP10 – 8″ x 10″ bx of 5
- NDP15 -10.5″ x 14″ bx of 3
- NDP20 – 17.5″ x 18″ bx of 2
Reinforced Diamond Repairs
$159.93 – $232.66
Related products
-
PANG A & B Strip Rubber 5lb ea
Reduce repair time and labor cost by using our reliable PANG A & B Strip Rubber!
- Clean process, no hand mixing!
- No wait time for solvent evaporation
- Excellent for belt and lagging repair as well as filling rubber lining seams
- Cures to 50-60 durometer hardness
- 18 month shelf life
- 5 – 1lb rolls per box
- Approximately 8.3 sq. ft. coverage per A & B box mixture
For an individual box of A rubber or B rubber please send us an email at info@techtirerepairsnc.com
$350.00 -
#968F PANG Activator
All Pangofol products must be used with PANG Activator, designed for two-part cold bonding cements. PANG Activator is available in 15cc, 30cc and 60cc. Mix 15cc Activator to every 8 oz. Pangofol.
For safety information, please see the Material Safety Data Sheet.
$9.95 – $15.95 -
RS3F Rapid Solution Heat Cure Cement
Rapid Solution is a black vulcanizing cement used with hot splicing materials in conventional vulcanizers. Recommended for hot splicing, repair or fabrication of rubber conveyor belts, or heat-curing pulley lagging.
- Formulated for curing temperatures from 210°F (100°C) to 320°F (160°C)
- For best results, use with PANG low temperature rubber compounds, cushion gums or PANG cover stock and tie gum
- Available in: Quart and Gallon
$25.95 – $73.33 -
Eli-Flex Conveyor Belt & Rubber Repair Resins
Eli-Flex products offer quick, easy, cost-effective solutions for damaged conveyor belting.
- Black resin suitable for repairing holes, tears, missing filler strips and more
- Can be used to re-build cleats, chevrons, sidewalls and more
- Designed for: fabric and steel cord rubber belts, and non-food-quality PVC belts
- Quick-setting
- Flame-retardant
- Environmentally-friendly handling properties
- Available in: 100 grams, 150 grams, and 300 grams
- General Information & Instructions
- Material Safety Data Sheet
$123.44 – $285.35
